Azimap Data Joins allow for four types of JOIN. These are:

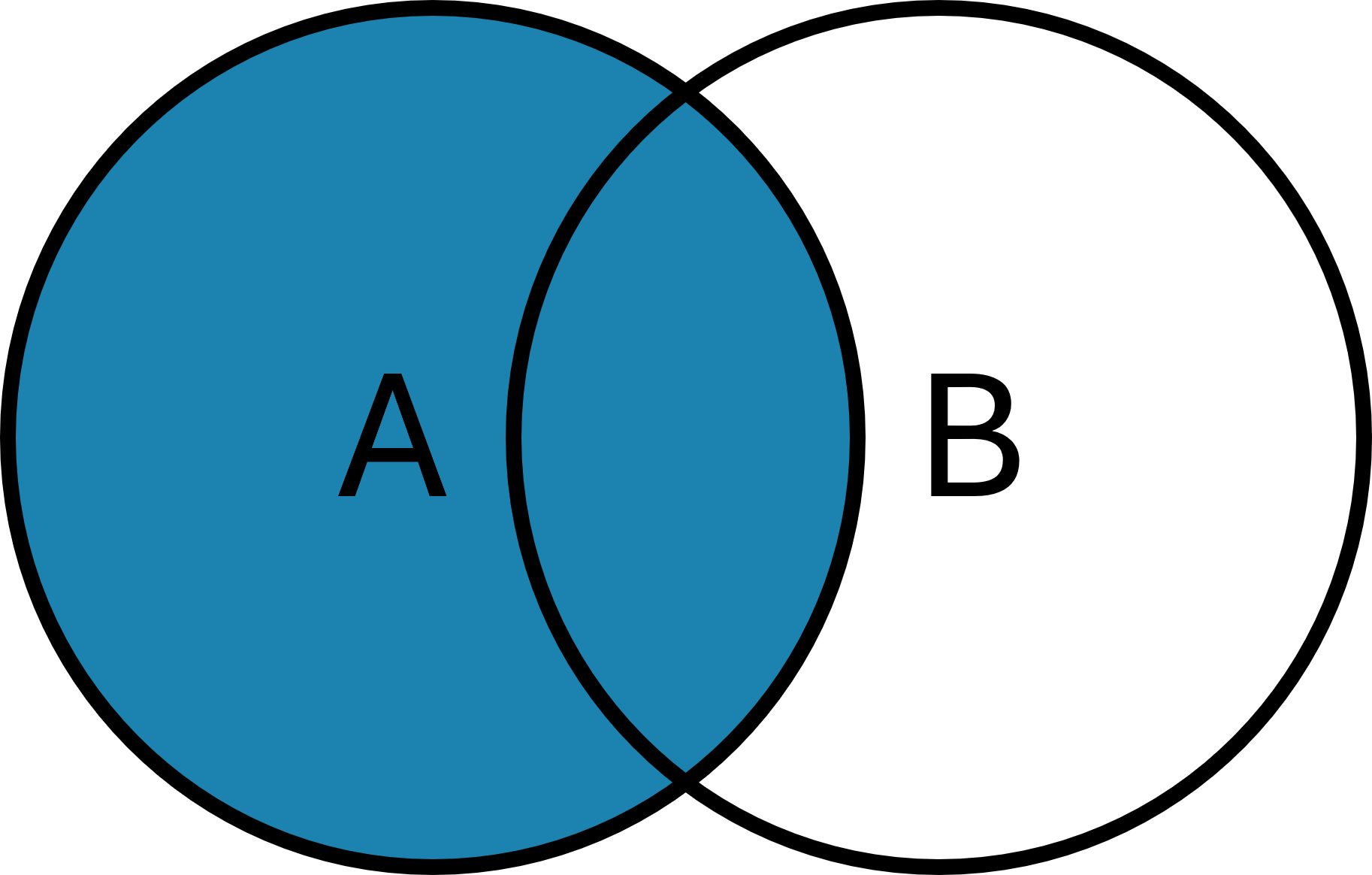

Left Join
![](/images/636636526472557602_LEFT_JOIN.png)
This query will return all of the records in the left table (table A) regardless if any of those records have a match in the right table (table B). It will also return any matching records from the right table.

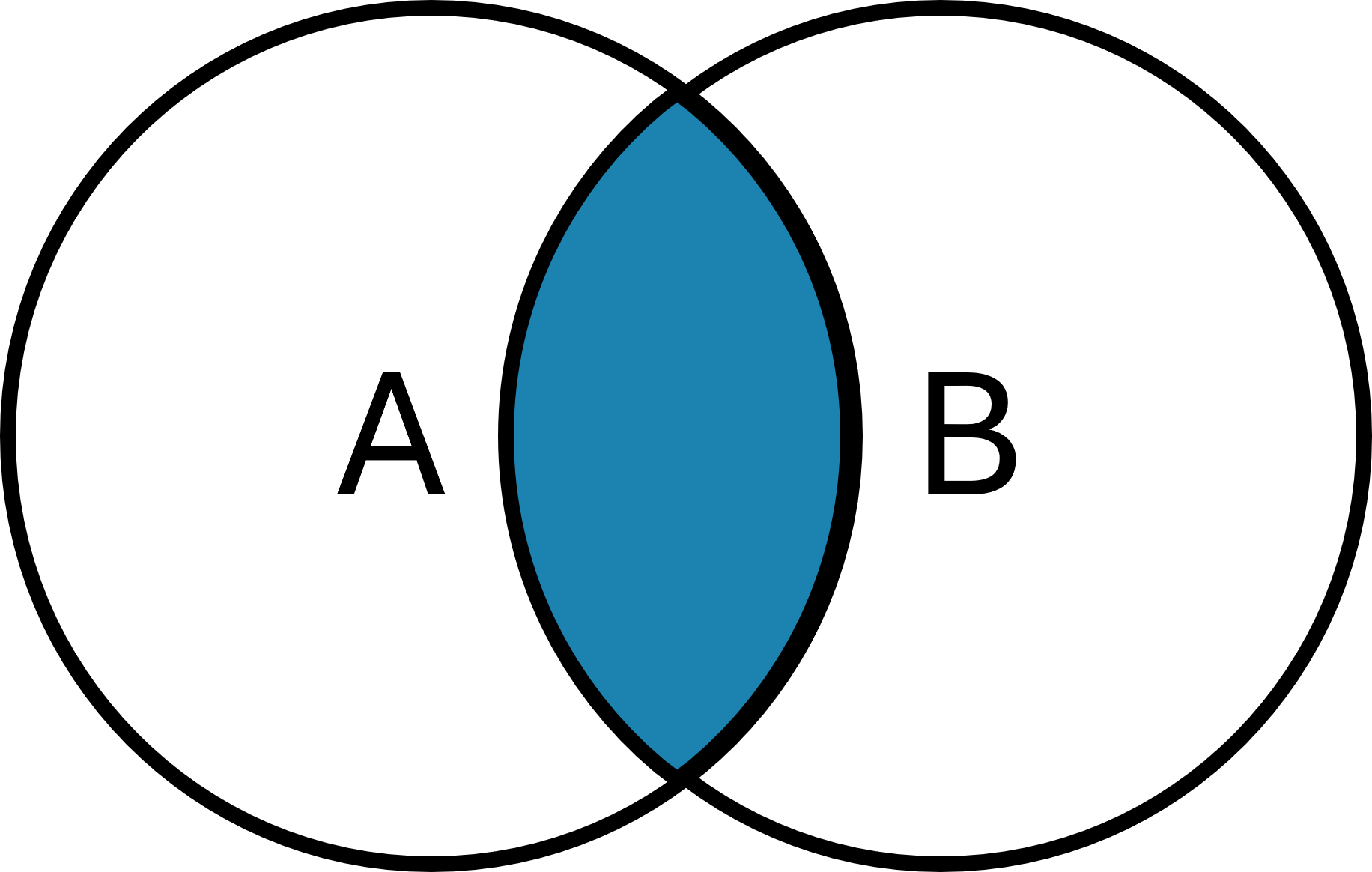

Inner Join
![](/images/636636527301758595_INNER_JOIN.png)
This is the simplest, most understood Join and is the most common. This query will return all of the records in the left table (table A) that have a matching record in the right table (table B).

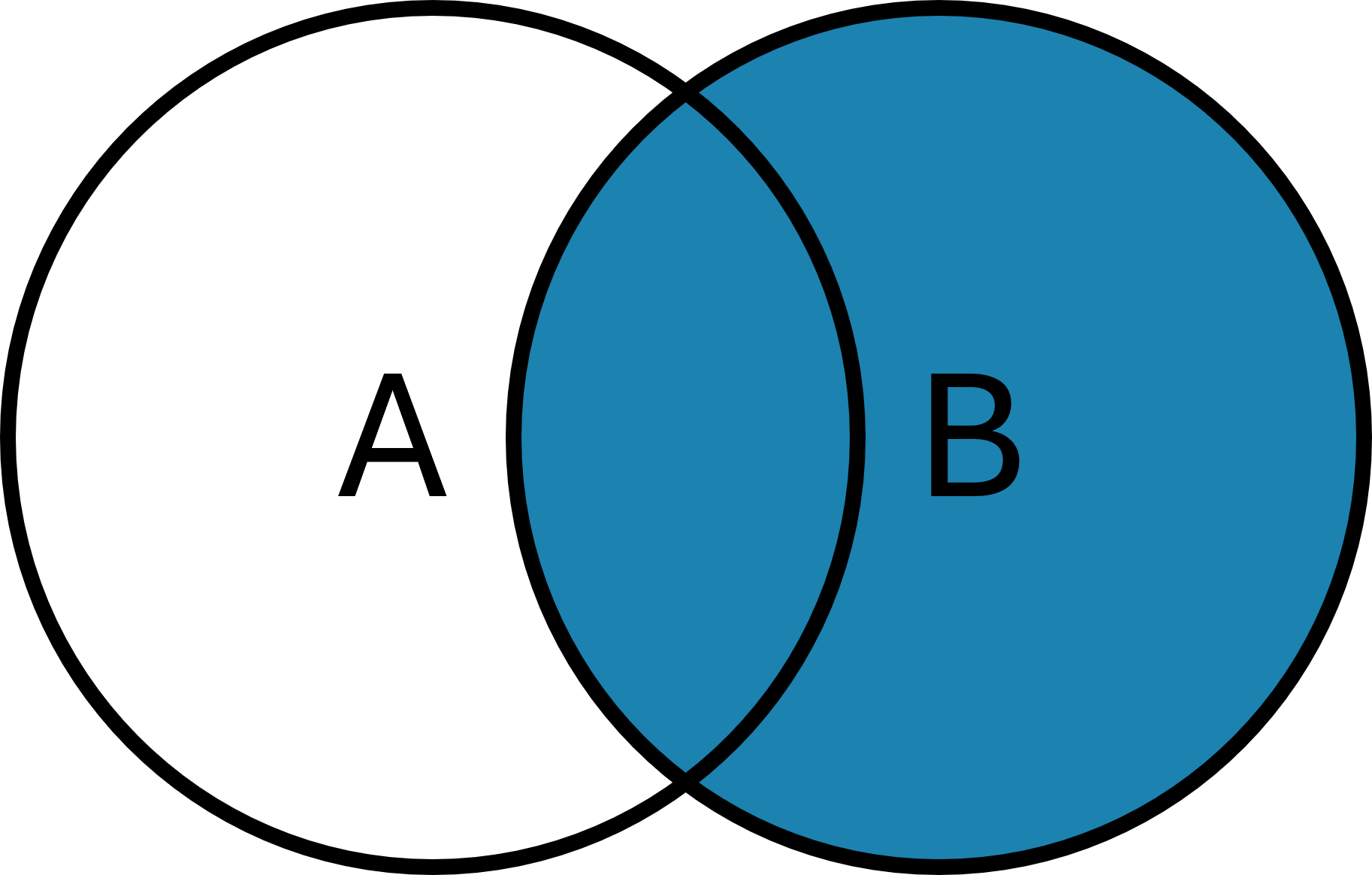

Right Join
![](/images/636636527933060609_RIGHT_JOIN.png)
This query will return all of the records in the right table (table B) regardless if any of those records have a match in the left table (table A). It will also return any matching records from the left table.

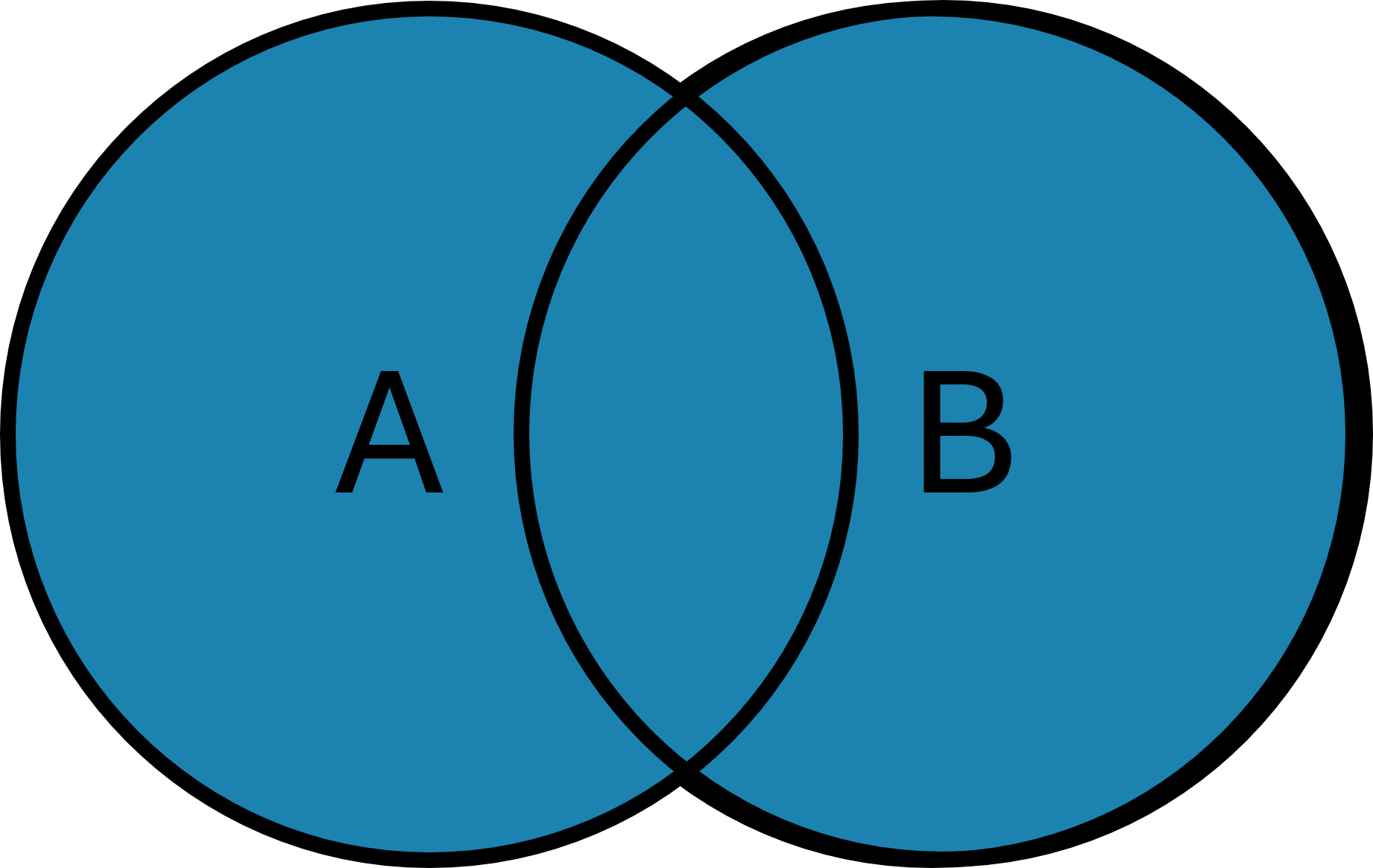

Outer Join
![](/images/636636528539621059_FULL_OUTER_JOIN.png)
This Join can also be referred to as a FULL OUTER JOIN
or a FULL JOIN
. This query will return all of the records from both tables, joining records from the left table (table A) that match records from the right table (table B).
References:
CL Moffat @ CodeProject
